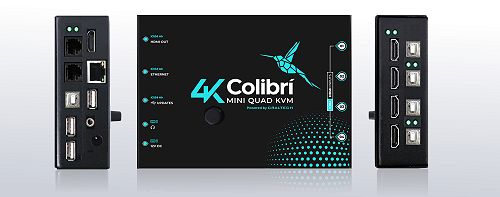

Colibrí 4K Mini Quad KVM
Electronic Navigation Ltd - January 15, 2024
Effortlessly control multiple displays from a single workstation, thanks to Colibrí 4K Mini Quad KVM and its Infinity Cascading Capability.
Optimize your wheelhouse and switch easily between your 4 HDMI sources and control them with the same Mouse and Keyboard on a 4K/FHD Display Monitor!
- HDMI Quad Split with KVM and built-in switching/control software
- 4 x HDMI Video inputs
- 4 x USB/KVM control inputs
- 1 x 4K HDMI Video output
- Control devices via a single Mouse and Trackball
- Features Quad-Split (4-way split) and Full Screen View
- Ethernet connector for remote control.
The intuitive interface ensures hassle-free setup and operation for users of all technical levels. Engineered for superior performance and versatility.
Upgrade to the Colibrí 4K Mini Quad KVM Video Processor and transform the way you operate, boosting connectivity, efficiency, and visual excellence!
Connections
VIDEO INPUTS
- 4 Full HD HDMI (1080p (60 / 59.84 / 50 / 30/ 29.97 /25 / 24 / 23.98) 1080i (60 / 59.94 / 50), 720p (60 / 59.94 / 50)
- PC resolutions: 800x600, 1024x768, 1200x720, 1366x768, 1280x1024, 1920x1080)
VIDEO OUTPUTS
- 1 x 4K HDMI UHD 50/60Hz Output and 1080i (50,60), 1080p (25, 30, 50)
KVM Connectors
- 4 KVM Inputs
- 2 USB for mouse and keyboard
- 1 KVM output and 2 x R-J11 for infinity cascade comunication
Audio output
Jack 3,5mm output for headsets or speakers.
Updates
Through USB 2.0 high speed connection or Ethernet.
Configuration
Through Ethernet control free software Soft4Boxes Pro.
Control
Built-in Encoder
Encoder for adjusting all the Quad-Split parameters.
External control
Full control of all parameters through ethernet using our free software Soft4Boxes or any other SNMP agent.
Customized Keyboard
Create your customized keypad broadcast deck using keypad creator on Soft4Boxes PRO and access your main features and layouts faster.
Dimensions
Power requirements
Power supply
12V External power supply
IEC Cable (included) for 100-240 V.
Power Fail protection
Configuration will preserve and restore inmediatly when power back on the equipment.
Power Consumption
10 W
Environmental Specifications
Operating Temperature
0 °C a 40 °C (32 °F a 104 °F)
Storage Temperature
–20 °C a 45 °C (–4 °F a 113 °F)
Relative Humidity
0 % a 90 % without condensation
Warranty
2 Year manufacturers warranty on the electronics. Limited Manufacturer warranty.
Contact ENL for further information and pricing.
ENL Contact: enquiries@enl.co.nz
